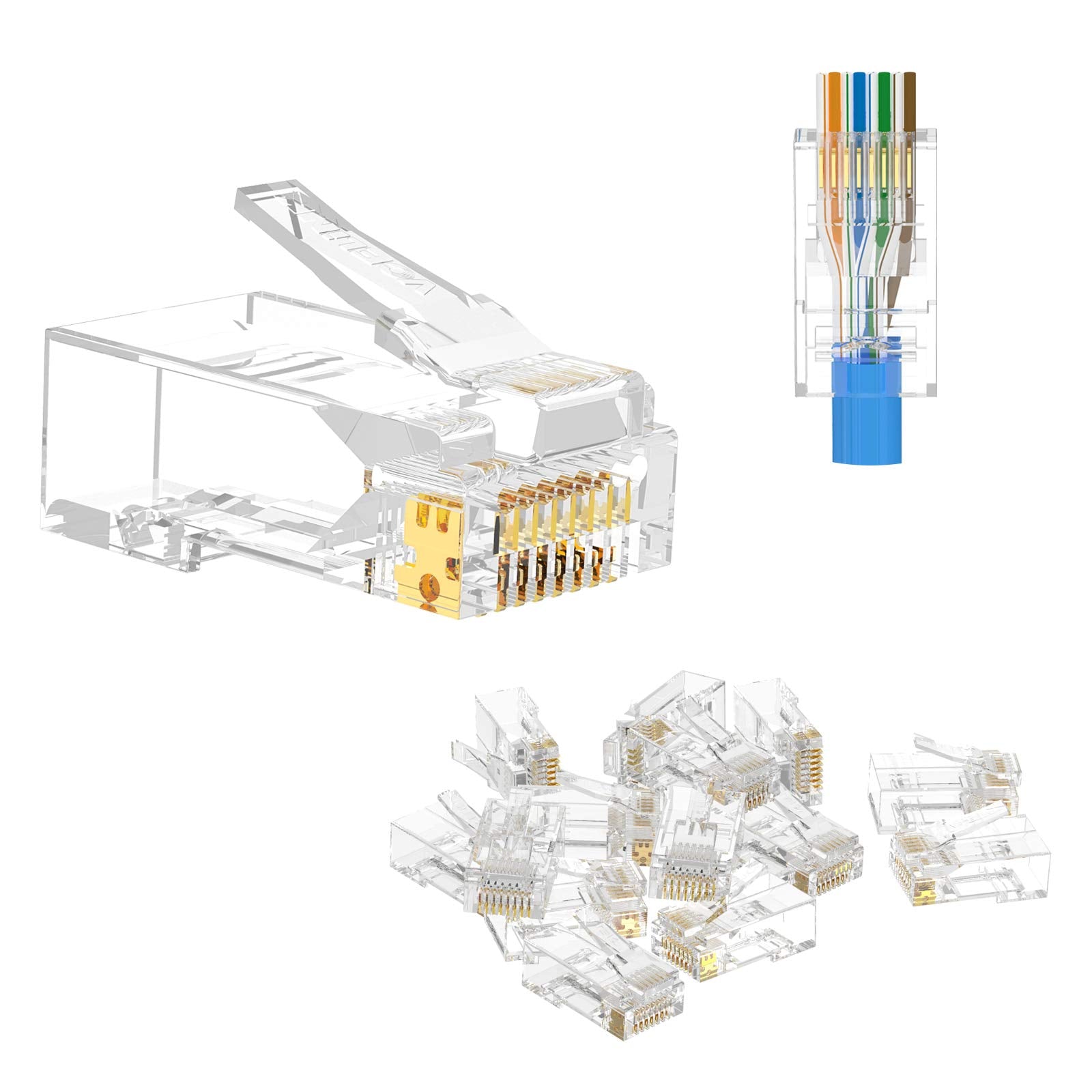

VCE RJ45 Connector Pass Through Cat6 25 Pack, Ethernet RJ45 Plug Gold Plated for Cat6/Cat5/Cat5e UTP Solid & Stranded Network Cable

SPECIFICATIONS

1.ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX. AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 1000 VOLTS AC. 60 SEC.
INSULATION RESISTANCE: 500 MΩ.
CONTACT RESISTANCE: 20mΩ MAX.
OPERATING AMBIENT TEMPERATURE: -20°C ~ 75°C.

2.MECHANICAL:
STRAIN RELIFE: 20POUND MIN.
DURABILITY: 1200 MATING CYCLES.

3.MATERIAL:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
CONTACT BLADE: COPPER ALLOY.
GOLD PLATING, ARE AVAILABLE.

4. USAGE:
SUITABLE FOR STRANDED & SOLID WIRE 23AWG ~ 26 AWG.
(It can be used for the wire OD from Ø 0.93 ~ Ø1.04)
